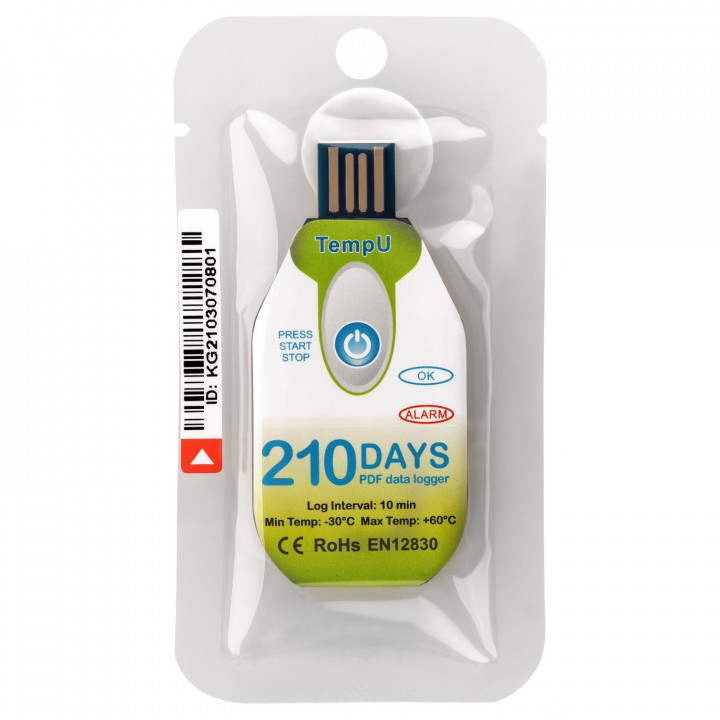

TempU S3 Single-use temperature data logger, 20 pieces

TempU S3 Single-Use Temperature Data Logger – Reliable temperature monitoring with automatic PDF report

The TempU S3 disposable temperature data logger is the ideal solution for the seamless monitoring of temperature-sensitive products during storage and transportation, whether in the food industry, pharmaceutical industry, or international air freight. With an integrated USB interface, the logger automatically generates a tamper-proof PDF report after the end of the deployment, without the need for additional software. The compact and lightweight temperature data logger is immediately ready for use and records temperatures over a period of up to 210 days at the preset 10-minute interval. The TempU S3 enables you to see at a glance whether the temperature requirements were met during transport or in cold storage rooms. The stored data (up to 32,000 measurement points) are securely documented. The unique serial number and the removable barcode sticker serve for easy traceability and prevent transmission errors.

The TempU S3 single-use data logger is ideal for one-time transport without return due to its disposable design. The logger is IATA compliant and can be used in air freight without requiring hazardous materials labeling. The TempU S3 data logger is approved by the airline EMIRATES. Additionally, the data logger meets the EN12830 standard for use in the food industry, such as for monitoring frozen goods.

Overview of the main advantages of TempU S3 data logger:

✔ Disposable data logger for temperature recording with automatic PDF report
✔ Integrated USB interface – no software download required
✔ Long runtime of up to 210 days (at a 10-minute measurement interval)
✔ Secure against manipulation thanks to individual serial number
✔ Barcode stickers to prevent transmission errors
✔ Compact design for side dishes in almost all packaging
✔ Food-safe and water-proof protective bag with self-adhesive point
✔ Compliant tp EN12830, CE, RoHS and IATA

Activation and use of TempU S3 Temperature Logger:

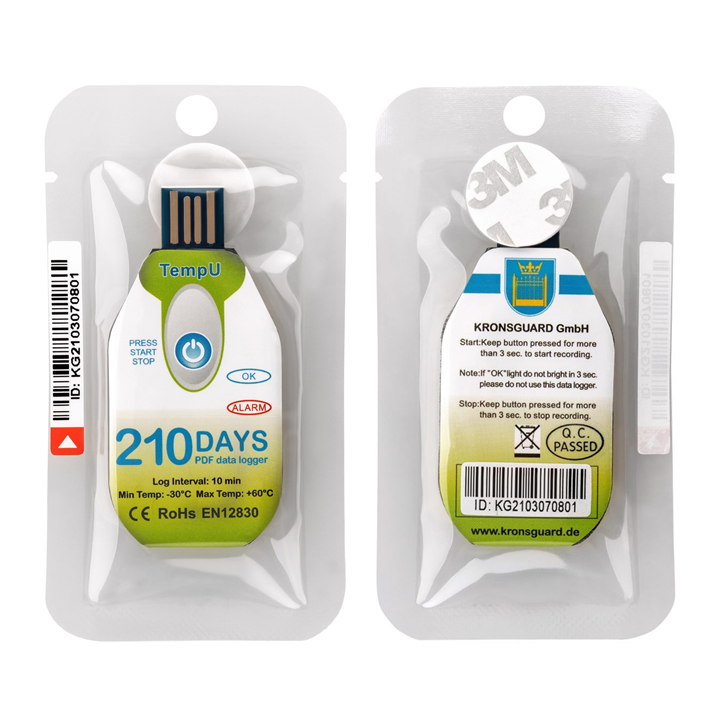

⚠ The single-use data logger is contained in a waterproof and airtight PP bag that should not be opened! ⚠

To start the logger, press the START button for 3 seconds. As soon as the OK light flashes, the data logger has been activated. The OK light flashes green about every 10 seconds. If the data logger records an alarm value, the ALARM light will turn red. The regular blinking of the LED lights indicates that the logger is active and recording data.

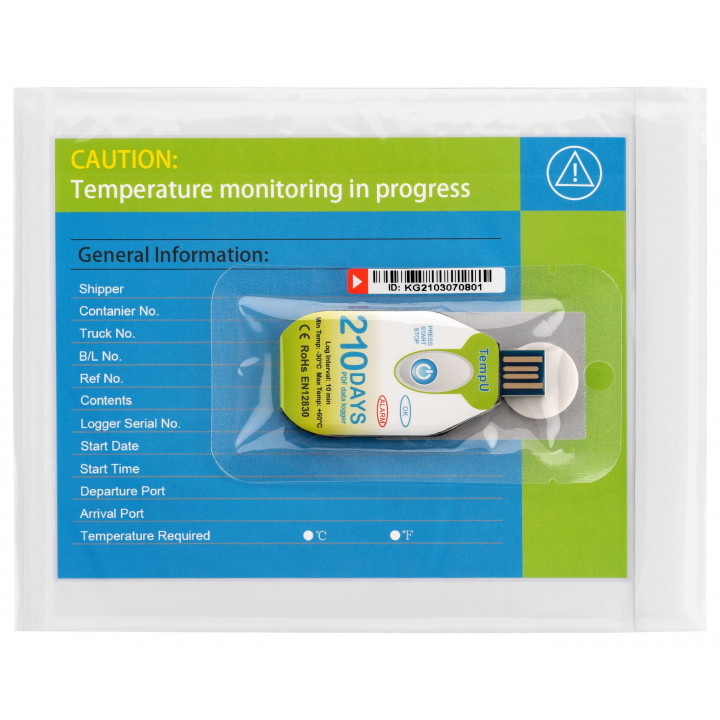

After the logger has been successfully activated, it can be attached to the shipment. Since the loggers are very light and small, the TempU S3 can be attached to almost any packaging. The data logger can also be glued in place with the adhesive point on the back of the PP bag. The round opening on the top of the plastic bag also allows for additional fastening by tying, hanging, etc. For additional identification, the blue-green shipping bags are provided, which are clearly visible on the outside of a package or pallet, attached to the data logger. Important information such as the logger's serial number can be stored on the shipping pouch.

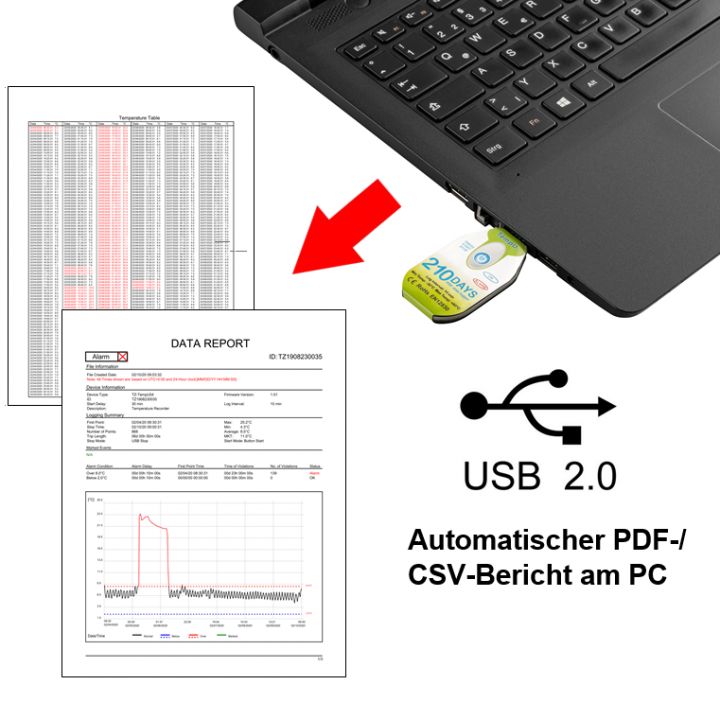

Once the goods have arrived at their destination, the data logger is removed from the shipment. The measured data is read out via the USB interface on the PC. The protective cover must be removed for this. As soon as the data logger successfully connects to the PC, the OK and ALARM lights will blink alternately. When only the OK light is lit green, the data report is generated and can be accessed in PDF and CSV format. The data logger automatically stops recording data once the data storage is full. The data logger can be manually stopped by pressing the STOP button for about 3 seconds. If the stop was successful, the ALARM light will flash for 3 seconds.

Technical data:

• Recording values: Temperature
• Application: Single-use
• Status indicator: LED lights
• Temperature range: -30°C to 60°C
• Accuracy: ±0.5°C (–20°C to 40°C), ±1.0°C (other ranges)
• Resolution: 0.1°C
• Data storage: max. 32,000 measurement points
• Recording time: up to 210 days
• Measurement interval: 10 min.
• Preset temperature limits: none
• Alarm/Start delay: none
• Durability (battery): 2 years (CR2032 coin cell)
• Protection class: IP67 (in PP bag)
• Connection interface: USB 2.0 (integrated)
• System requirements: PDF/CSV reader
• Conformity: EN12830, CE, RoHS, RTCA/DO-160G
• Storage conditions: Room temperature

Dimensions:

• 69 mm x 33 mm x 5 mm (L x W x H)
• Weight: 10 g

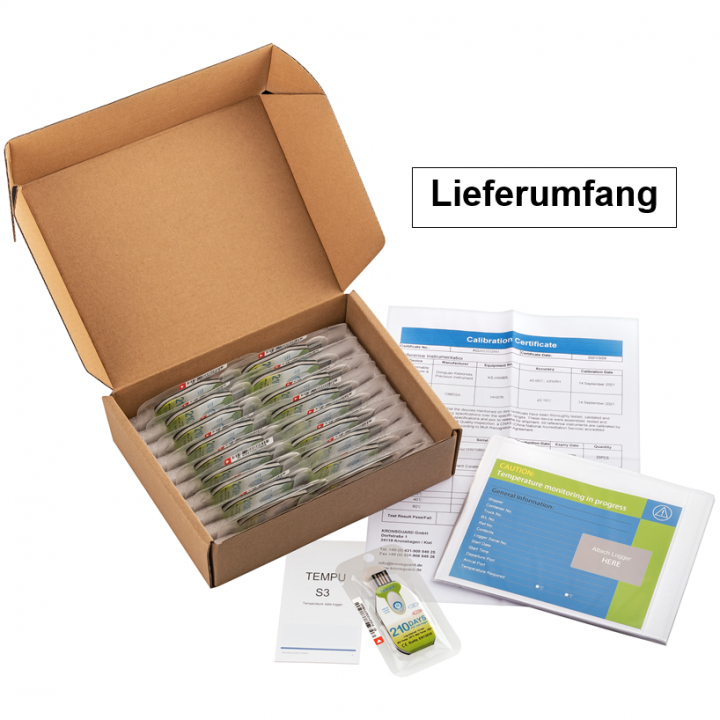

Content / Packaging unit:

• 20 x TempU S3 single-use data logger
• 20 x Pallet shipping bag
•  1 x English-language instruction manual
•  1 x Calibration certificate for the measuring points: -25°C, -5°C, 0°C, 25°C, 40°C, 60°C

Special configuration (on request):

• Individual Product Design
• Two limit values (one lower and an one upper limit) in the temperature range from -30°C to 60°C
• Measurement interval: 10 seconds to 18 hours
• Alarm delay: 0 to 960 minutes
• Start delay: 0 to 254 minutes
• Calibration certificate with company-specific data
• Individual serial numbers and barcodes
• Operating instructions and shipping bag inb custom design
• Data report with adjusted time zone and temperature unit

Are you interested in a data logger configured specifically for your requirements?

Call us at +49 (0) 431 908 949 25 or send your inquiry to info@kronsguard.de.
