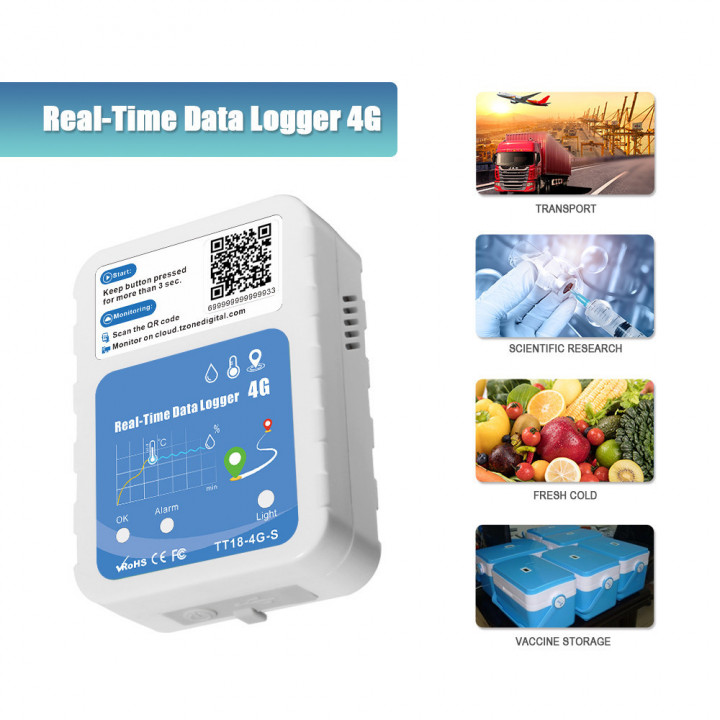

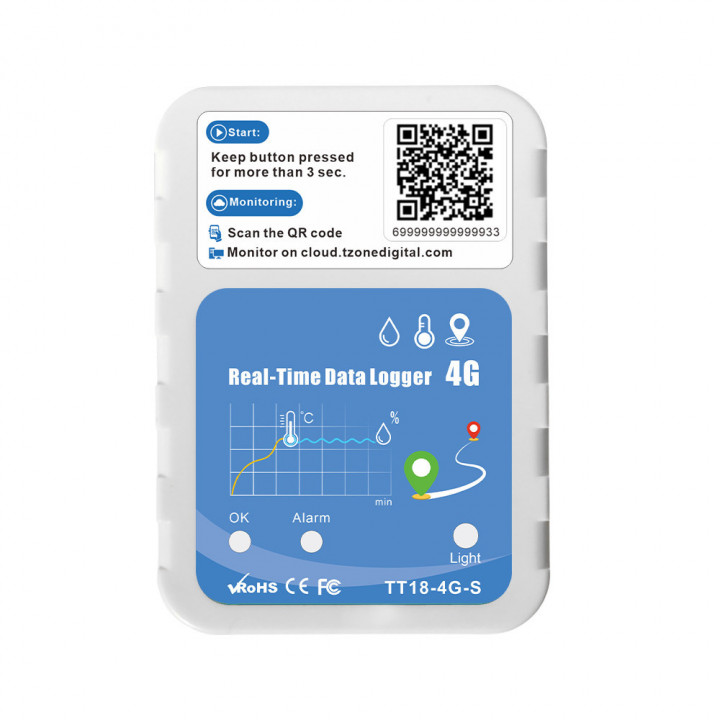

TempU LHT+ 4G single-use data logger for location, temperature, humidity and light

TempU LHT+ multisensor data logger for real-time data transfer

€79.50

Tax excluded

Cloud-based data transfer via GSM/4G with integrated SIM card
Global access to measurement values, viewable online at any time
Ideal for cold chains, logistics, and sensitive goods monitoring
Compact, easy to use & ready to go right away

Use: Single-use

Single-use
Multi-use

Do you have any questions about the product or would you like a customized offer? Individual Inquiry

Quantity	Unit price	You Save
10	€74.50	€50.00

2 - 3 weeks

The minimum purchase order quantity for the product is 5.

Cold chain

Incoming goods inspection

Overseas container

Transport / Logistics

4-in-1 Real-time data logger TempU LHT+ 4G - Live monitoring of temperature, humidity, location and light

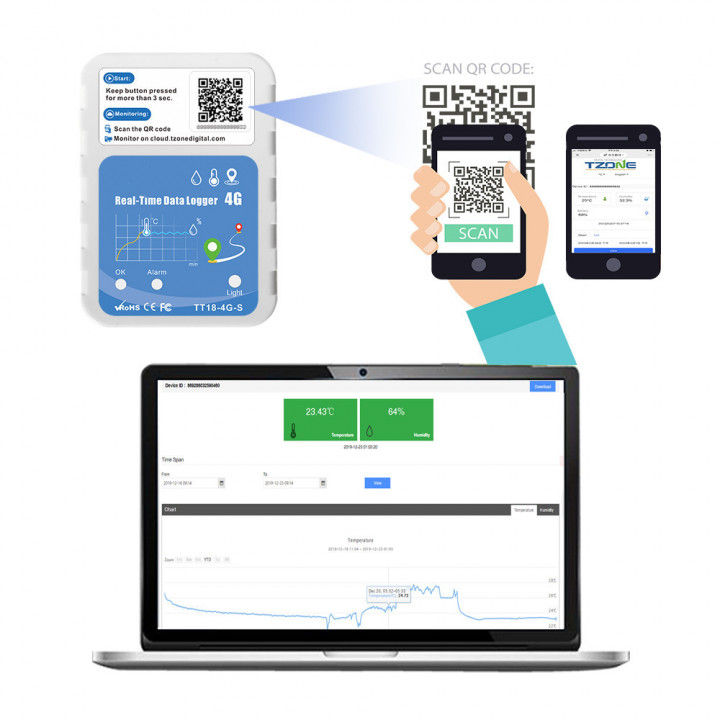

With the LHT+ 4G multi-sensor data logger, you always know where your products are and what condition they are in. The data logger is equipped with precise sensors for measuring location, temperature, light and humidity. By means of GSM data transmission, the recorded measured values can be viewed and monitored at any time via a cloud. The already built-in SIM card enables fast 2G/4G mobile transmission. The multi-sensors of the TempU LHT+ 4G data logger provide a lot of information about what happens to your products during transport. For example, you can see if and how often your container has been opened by the light sensor.

Depending on the application, the disposable data logger or the reusable logger is better suited. Disposable data loggers are usually used when a traceability of the measuring instrument is not to take place. Reusable data loggers are particularly used in factory traffic. Whether for single-use or multi-use, both data loggers ensure reliable transport monitoring and provide you with real-time information on critical measured values. The user-friendly cloud allows you to view and manage custom reports to ensure seamless transport control.

Technical details:

Multi-sensor data logger for real-time data transmission
Available as single-use or multi-use data logger
Fastening: double-sided adhesive pad
For multi-use data loggers: Incl. SIM card and cloud access for 1 year

Model	2890-S4G	2890-M4G
Recording values	Temperature, humidity, location, light
Application	Single-use	Multi-use
Status	LED
Measurement range	Temperature: -30°C to +60°C Humidity: 5% to 95% rH Light: differentiating between light and dark
Temperature unit	°C / °F
Accuracy	Temperature: ±0.3°C at 0°C to +60°C, ±0.5°C at other range Humidity: ±3% rH at 10% to 90% rH, ±5% at other range
Resolution	Temperature: 0.1°C Humidity: 1% rH
Data storage	max. 20,000 measurement points
Measurement interval	30 minutes
Recording time	up to 60 days	up to 100 days (one charge)
Preset limits	Temperature: none Humidity: less than 10% rH, more than 90% rH
Alarm /Start delay	none
Shelf life (SIM card)	1 year if not activated; max. 120 days from activation	1 year (optional extension up to 3 years, replaceable)
Battery	3.7V/3000mAh Lithium battery	3.7V/4400mAh Lithium battery (replaceable)
Storage conditions	Room temperature
Protection class	IP54
Location service	LBS
Data transmission	Global LTE 4G/5G (2G Fallback)
Frequenzy band	LTE-FDD: LTE-FDDB1/B2/B3/B4/B5/B7/B8/B20/B28/B66 GSM: 850/900/1800 /1900MHZ
Conformity	CE, RoHS, FCC, Calibration Certificate

Dimensions:

L x B x W: 90 x 64 x 27 mm
Weight: 138 g

Special configuration:

The TempU LHT+ 4G real-time data logger can be preconfigured according to your requirements:

Measurement interval for single-use version: 5 minutes to 60 minutes (max. runtime is 120 days)
Measurement interval for multi-use version: 5 minutes to 24 hours
Alarm delay: 0 to 24 hours
Start delay: 0 to 24 hours
Minimum order quantity: 20 pieces

Do you need data loggers with customized presets? Please call us at +49 431 908 949 25.
