TempU LHT+ multisensor data logger for real-time data transfer

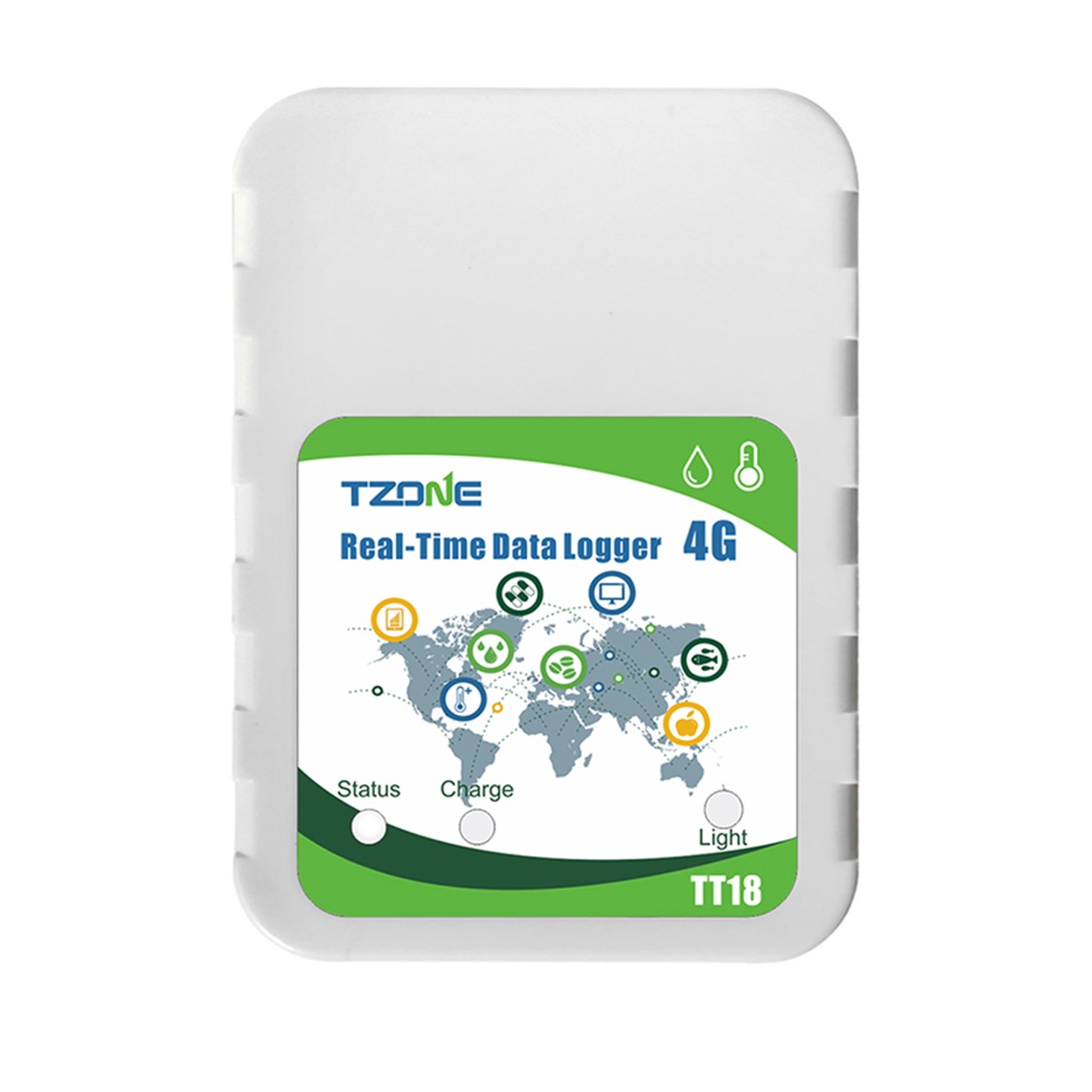

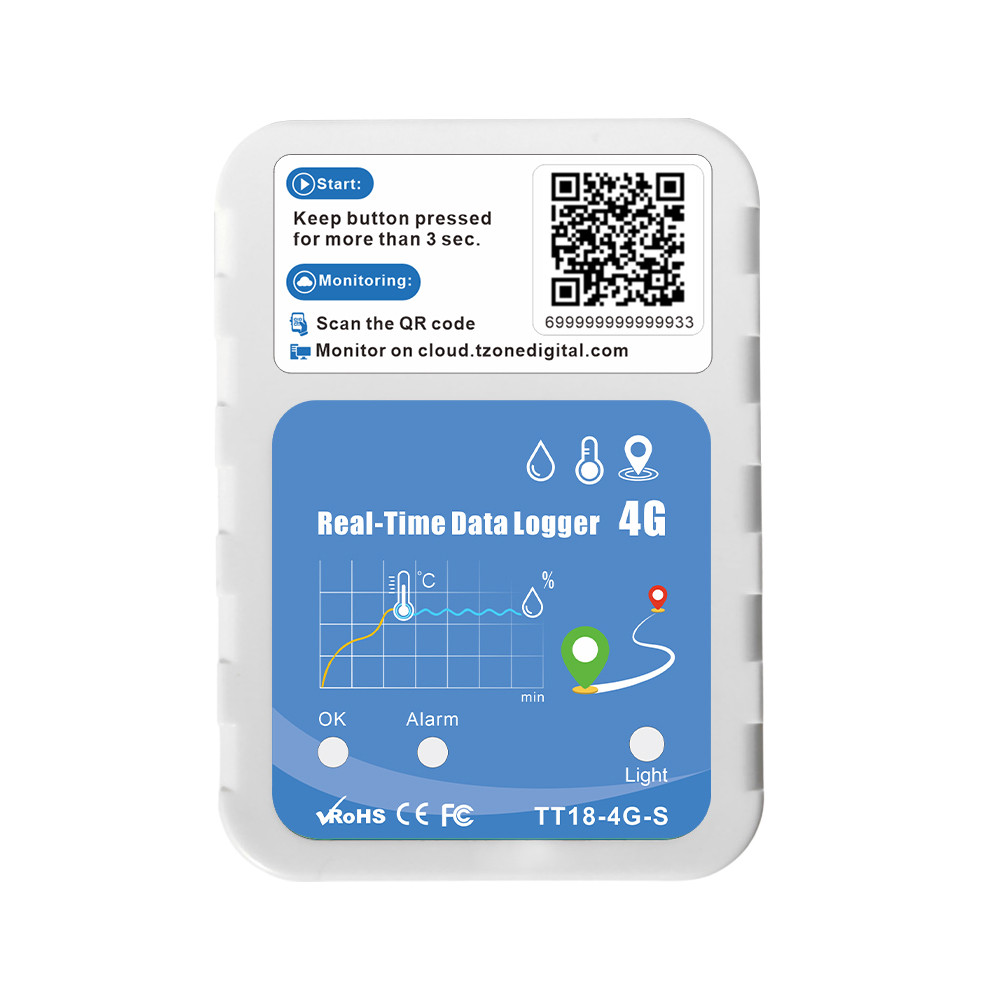

4-in-1 Real-time data logger TempU LHT+ 4G - Live monitoring of temperature, humidity, location and light

With the LHT+ 4G multi-sensor data logger, you always know where your products are and what condition they are in. The data logger is equipped with precise sensors for measuring location, temperature, light and humidity. By means of GSM data transmission, the recorded measured values can be viewed and monitored at any time via a cloud. The already built-in SIM card enables fast 2G/4G mobile transmission. The multi-sensors of the TempU LHT+ 4G data logger provide a lot of information about what happens to your products during transport. For example, you can see if and how often your container has been opened by the light sensor.

Depending on the application, the disposable data logger or the reusable logger is better suited. Disposable data loggers are usually used when a traceability of the measuring instrument is not to take place. Reusable data loggers are particularly used in factory traffic. Whether for single-use or multi-use, both data loggers ensure reliable transport monitoring and provide you with real-time information on critical measured values. The user-friendly cloud allows you to view and manage custom reports to ensure seamless transport control.

Technical details:

• Multi-sensor data logger for real-time data transmission
• Available as single-use or multi-use data logger
• Sensors for temperature, light, location and humidity
• Integrated SIM card enables global live tracking through GPRS localization
• Measuring range: -20°C to +60°C (temperature) / 0 to 90% rH (humidity)
• Accuracy: ±0.3°C (temperature) / ±3% rH (humidity)
• Resolution: 0.1°C (temperature) / 1% rH (humidity)
• Data storage: up to 20,000 measurements
• Recording time: up to 60 daya (single-use), up to 100 days (multi-use)
• Measuring interval: 15 minutes (single-use), 30 minutes (multi-use)
• Data transmission: GMS Quad Band 4G/2G
• Durability: 1 year / 3.7V/3000mAh Lithium Batterie
• Fastening: double-sided adhesive pad
• Protection class: IP54
• Software: Cloud.tzonedigital.com
• Certification: CE, RoHS, FCC, Calibration certificate
• For multi-use data loggers: Incl. SIM card and cloud access for 1 year

Dimensions:

• L x B x W: 90 x 64 x 27 mm
• Weight: 138 g

Content / Packaging:

• 1 x Real-time data logger TempU LHT+ 4G (single-use or multi-use)
• 1 x Calibration certificate
• 1 x SIM card for Cloud use (integrated)
