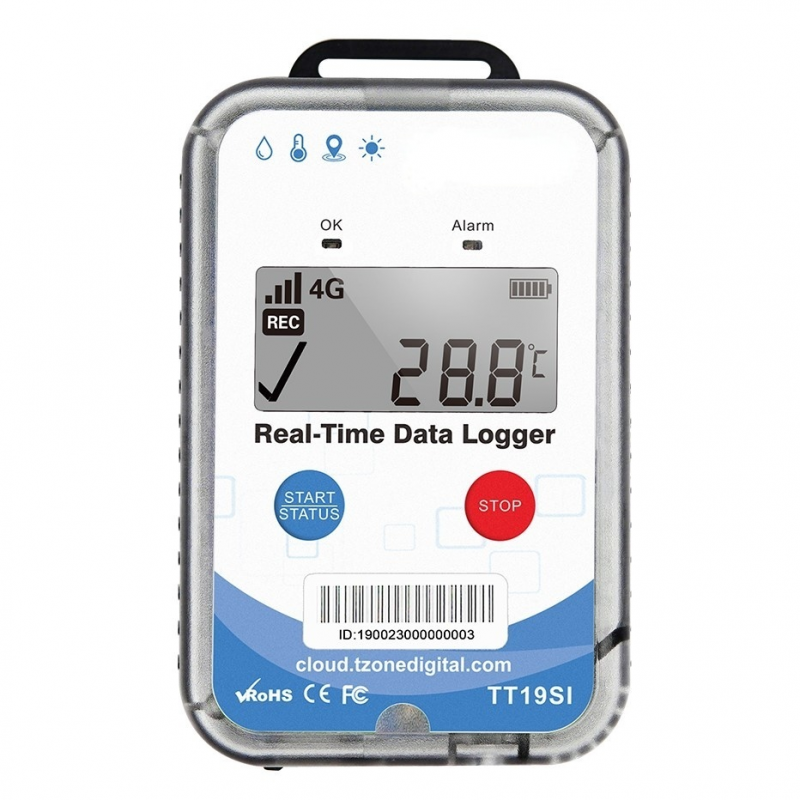

5-in-1 data logger TempU TT19 - Global live monitoring of temperature, humidity, location, light and vibration
The TempU TT19 is a real-time data logger that enables comprehensive monitoring of critical transport parameters. Equipped with precise sensors, it continuously records temperature, humidity, location, light exposure, and vibration. Thanks to integrated 4G/5G connectivity via a SIM card, the collected data is transmitted in real time to a cloud-based platform, allowing users worldwide to access up-to-date information at any time. This ensures seamless control over the condition and location of sensitive goods throughout the entire transport process. The various measurement parameters are suitable for the following purposes:
Temperature: Temperature monitoring is crucial for products that can only be safely transported and stored within a specific temperature range, for example
- Vaccines and medications (cold chain)
- Food (perishable goods)
- Chemicals (temperature-sensitive substances)
Relative humidity: Too high or too low humidity can damage materials and products or affect their shelf life, for example
- Electronics (risk of corrosion)
- Paper, wood and artwork (distortion, mold)
- Pharmaceuticals (loss of efficacy)
Location: Location tracking enables seamless tracking of the delivery and increases security through theft or loss prevention, for example
- Real-time tracking of shipments worldwide
- Supply chain documentation (for GxP-compliant transportation)
- Proof of transport damage or loss
Light: The detection of light penetration indicates whether a package has been improperly opened or damaged, for example
- Manipulation proof for security seals
- Protection of light-sensitive products (like medications)
- Documentation of unauthorized intermediate access
Vibration (impact load): Shock sensors detect impacts that can cause damage during transport, for example
- Protection of sensitive equipment (for example laboratory equipment, glassware)
- Quality control for mechanically sensitive goods
- Evidence of improper handling
Technical details:
| Model |
TT19SI
|
TT19MU
 - Kopie.jpg)
|
| Recording values |
Temperature, humidity, location, light, vibration |
| Type of use |
Single-use |
Multi-use |
| Status display |
LED, LCD display |
| Range of measurement |
Temperature: -30°C to +60°C
Humidity: 5% to 95% rH
Light: 0 to 64,000 lux
Vibration: 0G to 16G |
| Temperature unit |
°C / °F |
| Accurarcy |
Temperature: ±0.3°C at 0°C to +60°C, ±0.5°C in other range
Humidity: ±3% rH at 10% to 90% rH, ±5% in other range
Ligth: ±1 lux
Vibration: ±0,001G |
| Resolution |
Temperature: 0.1°C
Humidity: 1% rH |
| Data storage |
max. 17.000 measurement points |
| Measurement interval |
60 minutes |
| Recording time |
up to 120 days |
up to 60 days (one charge) |
| Preset limits |
Temperature: none
Humidity: less than 10% rH, more than 90% rH
Light: more than 200 lux
Vibration: 2G |
| Alarm-/ Start delay |
none |
| Shelf life (SIM card) |
1 year |
1 year (optional extension up to 3 years, replaceable) |
| Battery |
3.7v/4000mAh lithium battery |
3.7v/4000mAh lithium battery (replaceable) |
| Storage conditions |
Room temperature |
| Protection class |
IP64 |
| Location service |
LBS |
LBS, WiFi, GPS |
| Data transmission |
GSM Quadband 4G/5G (2G Fallback) |
Global LTE 4G/5G (2G Fallback) |
| Frequency band |
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66
GSM: 850/900/1800 /1900MHZ |
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B38/B39/B40/B41
GSM: 850/900/1800 /1900MHZ |
| Conformity |
CE, RoHS, FCC, Calibration Certificate |
Special configurations are possible upon request or can be made independently in the free cloud.
DOWNLOAD: Cloud.tzonedigital.com
Dimensions:
- Size: 100 mm x 66 mm x 29 mm
- Weight: 165 g
Content / Packaging unit:
- Minimum order quantity: 10 pcs
- 1 x TempU TT19 Real-time data logger
- 1 x SIM card (built-in)
- 1 x English-language instruction manual
- 1 x Calibration Certificate
